Equinox House on December 7, 2010. Snow had just fallen and it is bitter cold outside. And yet, as shown in the temperature graph below, the inside temperature is comfortable throughout the house. The second plot shows that Equinox House naturally stays in a comfortable humidity range (40 to 60% relative humidity). Instead of dry, itchy air, Equinox House has a comfortable moisture level without needing an energy inefficient humidifier.
No cold drafts or cold regions exist in the house, and a heating system only as large as two hairdryers is required to keep it comfortable in the coldest winter weather. Newell Instruments’ CERV technology(Conditioning Energy Recovery Ventilator) keeps you comfortable, and surrounded by fresh air, with pollens and allergens filtered out, every day of the year.
Equinox House combines form and function in a manner that requires only a fraction of the energy of homes built with conventional construction techniques. The novel “equinox overhang”, for example, acts as a solar reflector in the winter and as a solar shade in the summer.
To read more about the performance of Equinox House, our October, 2010 ASHRAE Journal (ASHRAE is the American Society of Heating Refrigeration and Air Conditioning Engineers) column describes the energy performance of Equinox House relative to modern residential construction.
Read the column here: ASHRAE October Column

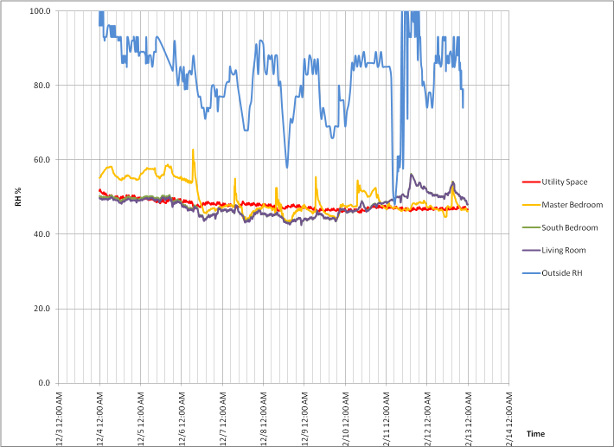

Plot showing Relative Humidity of house from Dec 4, 2010 to Dec 13, 2010

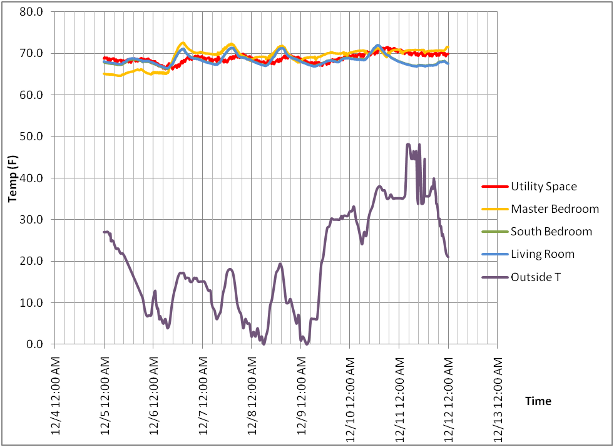

Plot showing Temperatures of house from Dec 4, 2010 to Dec 13, 2010
